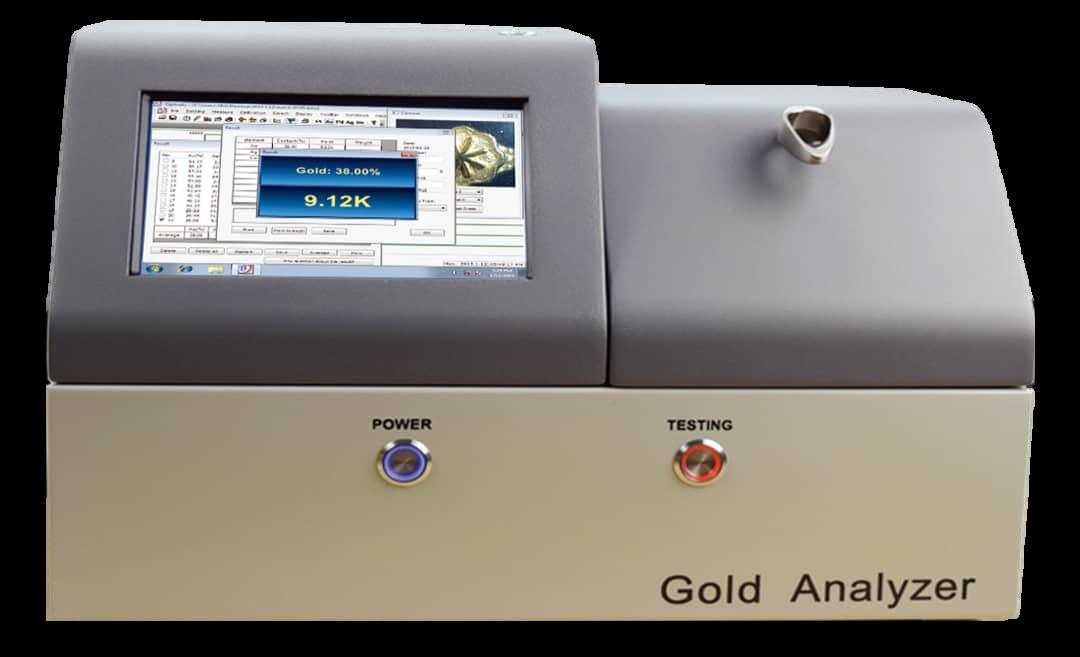

Based on our more than 20 years' experience of XRF research and development, XRA2000 gold analyzer is an innovative and unique machine to analyze gold, platinum, silver and palladium and other metals, it also can use for testing plating thickness and liquid concentration. XRA2000 does not need an extra PC to control and its footprint is less than 2 A4 sheets, hence customers only need to provide a small working space. The software is very easy to use as it only involves just a press of the button on the touch screen of the machine and it will automatically report the result.
| Model | XRA2000 |
| Excited Source | Ultra low power X-ray tube, air cooling |
| Collimator | 1-2mm or according to the customer's requirement |
| X-ray Generator | 50kV 1mA |
| Detector | High resolution detector |
| Processing Electronics | 1.99GB CPU with integrated FPU with 4GB RAM; DPP and MCA |
| Data Display | 7 inch High resolution Colour QVGA resolution with touch screen |
| Data Storage | 128GB SDD |
| Data Transfer | USB interface with many equipment; WIFI |
| Software | Based on Microsoft Windows 10 system easy operating, only to press "Start" button, then results will be shown on screen. No need more standard samples for calibration. |
| Analysis Time | 5s to 120s |
| Analytical Tolerance | 0.01% 0.3% (average) |
| Detection Elements Range | Au, Ag, Pt, Pd, Cu, Zn, Ni |
| Working Voltage | DC12V |
| Power Supply Mode | AC100V-240V, DC12V(vehicle power supply or Li-ion battery |
| Environmental Temp Range | -10 °C to 50 °C (14 °F to 122 °F) |
| Dimensions | 40x 30 x27cm (floor space <2 pieces of A4 paper) |
| Weight | 17Kg |
| Standard Accessory | Polish kits; Operating pen; DC12V power supply; Manual; CD; Jewellery holder |
| Optional Accessory | Reference calibration samples; USB micro-printer; Micro-wireless keyboard and mouse; Vehicle power supply DC converter. |
